IDEAL Shielded Feed-Thru CAT-6A/6/5-E Modular Plugs For Larger Diameter Conductors, 25-Pack, Metallic (85-368)
Original price was: $56.99.$39.89Current price is: $39.89.
- Top Quality Products
- Safe Payments for a Better Shopping Experience
- Experience the difference quality makes.
- Quality Products, Quality Service

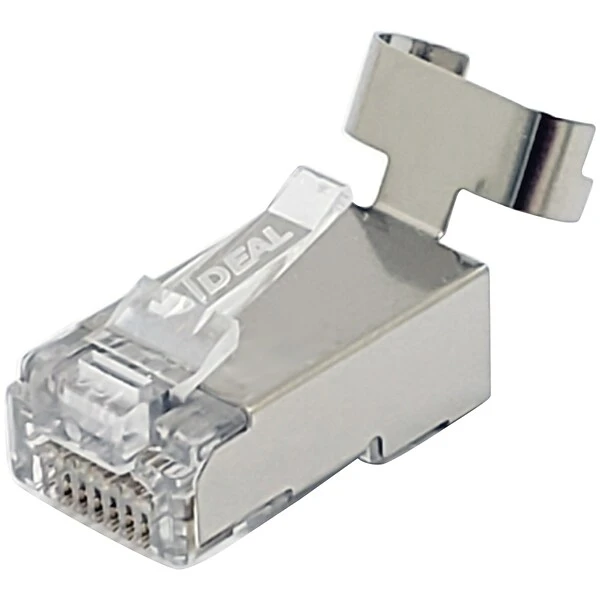

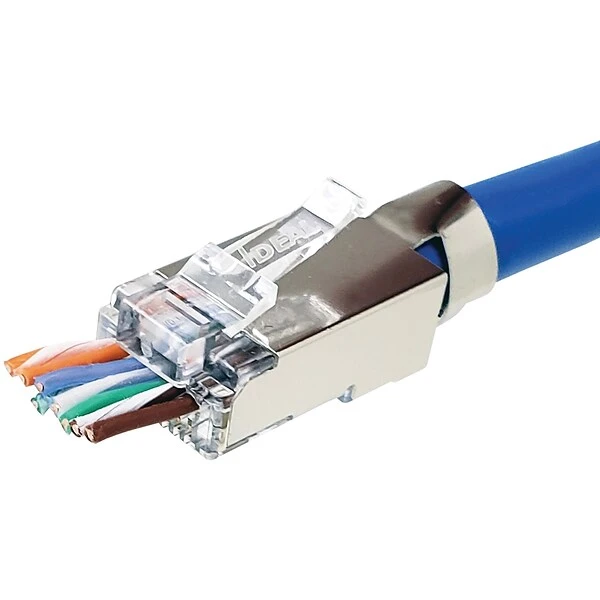

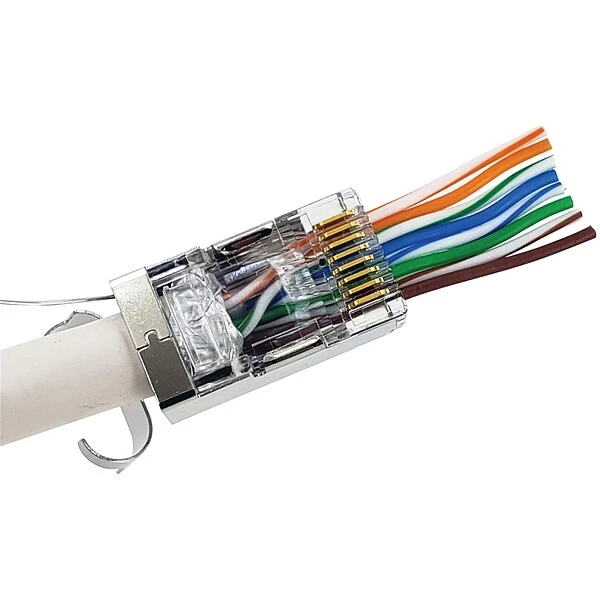

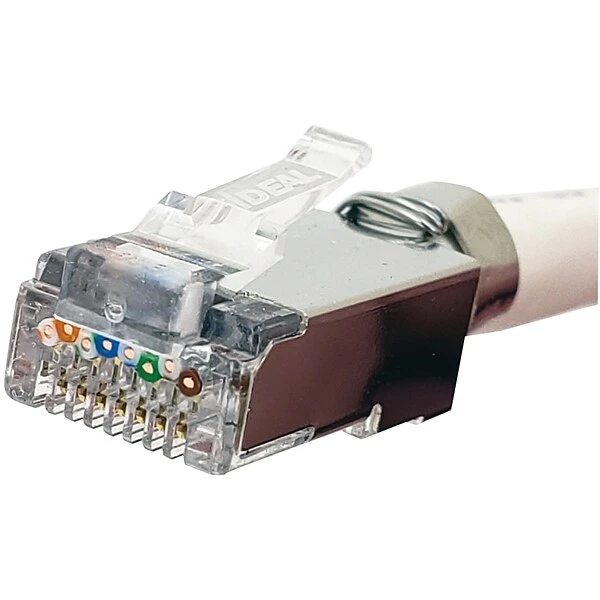

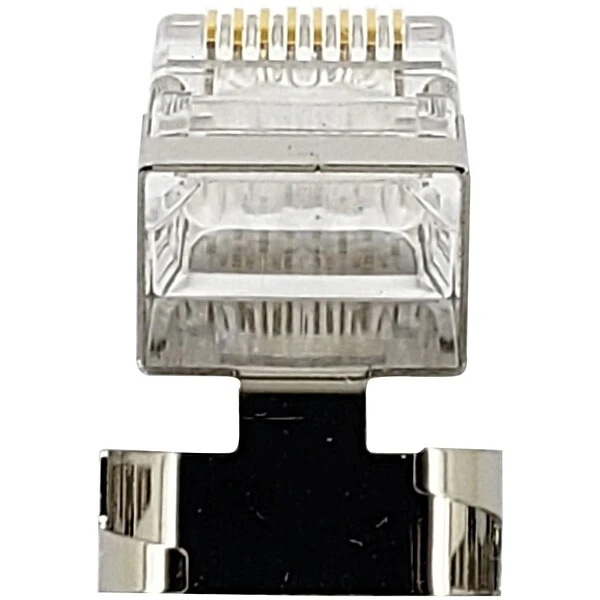

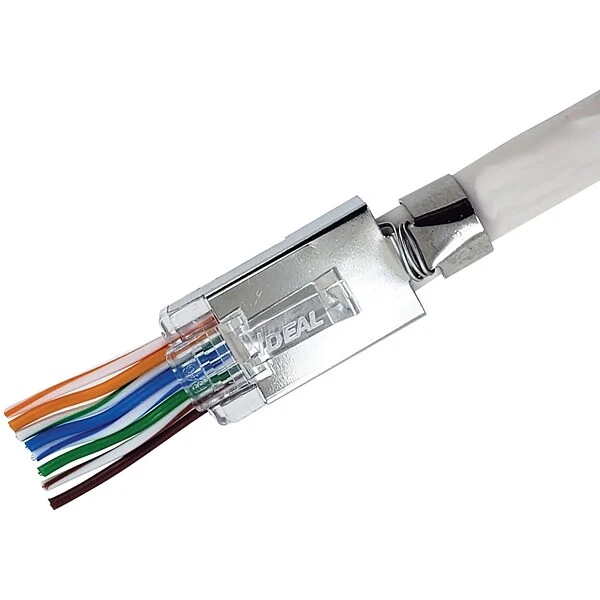

The 25-pack of IDEAL 85-368 Shielded Feed-Thru CAT6A/6/5E Modular Plugs are shielded with ground wire for conductors .040 in. to .048 in. They are specifically designed to handle the challenges faced with field termination of shielded cables but will also work with unshielded cables. Utilizing a unique pin and stagger pattern, the single-piece design helps to funnel the conductors through the connector and out of the Feed-Thru end. No load bars or multipiece assemblies are required. These modular plugs are simply twisted for an easy assembly process. These plugs require the IDEAL FT-45 Crimp Tool to terminate. No adjustments or blade changes are required to the FT-45 to use these connectors.
- For shielded or unshielded CAT-6A, CAT-6, or CAT-5E with insulated conductor diameter of .040 in. to .048 in., maximum jacket diameter of .32 in.
- Shield continuity can be made internally by folding the cable foil around the jacket and making contact with the inside of the connector walls or externally by wrapping the cable drain wire around the base of the jacket strain relief clip
- Jacket strain relief is prepositioned in the up position so cable insertion is simplified
- Pre-formed clip can be closed and crimped with a standard needle-nose or plier-nose device
- Requires the IDEAL FT-45 Crimp Tool to properly terminate
- 25-pack
| Adapter & Splitter Type | Adapter |
|---|---|
| Adapter Use | Data |
| Brand | IDEAL |
| End 1 Connector Type | Other |
| End 2 Connector Type | Other |
